Standalone Box Media Converters

We provide series of Box media converter to implment the conversion between legacy Ethernet to single pair Ethernet.

1, ET1TTBS - 10BASE-T - 10BASE-T1L with PSE support


HiSGT1FTM module is one standard pluggable SFP module.It implements the coversion between SGMII and 100M single pair Ethernet 100BASE-T1. Based on the back side DIP Switch configuration, it will finish the self-configuring after powerup. User can configure its Master/Slave working mode via the DIP Switch. And the faceplate will provide 2 Leds to show the working status. One LED is for Link/Act, another LED is for Master/Slave indication.

Key Features
  • Standalone Box Media Converter
  • Native Ethernet 10BASE-T to Single Pair Ethernet 10BASE-T1L
  • Support Power Over Data lin (PODL, also called SPoE) Power Source Equipment (PSE) on 10BASE-T1L Port
  • Support 802.3BU.2 Class 4,5,6,7 and 802.3cg Class 10,11,12
  • Long-Reach(LR)/Short-Reach(SR) Configurable via DIP switch
  • Type-C USB2.0 UART for Status Checing
  • Support up to 1km cable length
  • DC power Input 18V - 30V
  • Operating temperature range: -40°C to 70°C
Typical Application

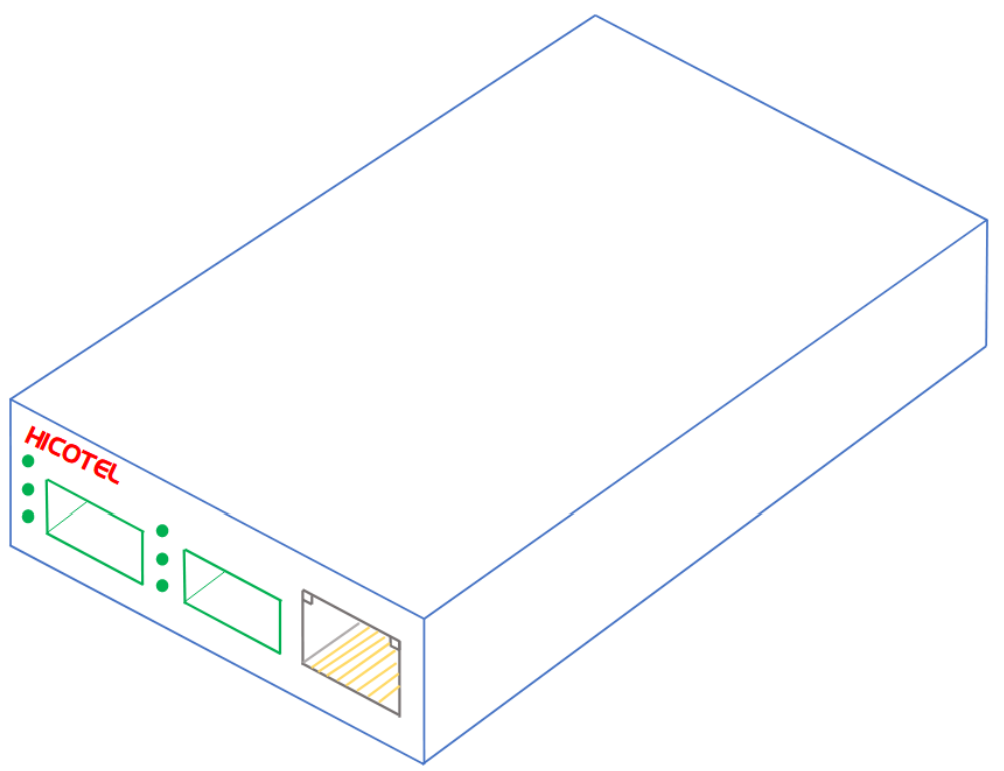

2, ET1TTBD - 10BASE-T - 10BASE-T1L with PD support


HiSGT1GTM module is one standard pluggable SFP module.It implements the coversion between SGMII and 1000M single pair Ethernet 100BASE-T1. Based on the back side DIP Switch configuration, it will finish the self-configuring after powerup. User can configure its Master/Slave working mode via the DIP Switch. And the faceplate will provide 2 Leds to show the working status. One LED is for Link/Act, another LED is for Master/Slave indication.

Key Features
  • Standalone Box Media Converter
  • Native Ethernet 10BASE-T to Single Pair Ethernet 10BASE-T1L
  • Support Power Over Data lin (PODL, also called SPoE) Power Device (PD) on 10BASE-T1L Port
  • Support 802.3BU.2 Class 4,5,6,7 and 802.3cg Class 10,11,12
  • Long-Reach(LR)/Short-Reach(SR) Configurable via DIP switch
  • Type-C USB2.0 UART for Status Checing
  • Support up to 1km cable length
  • Power Supply can be external Power connector or PoDL Power via Dataline
  • External DC power Input 28V - 30V
  • It can output DC power under PoDL mode
  • Operating temperature range: -40°C to 70°C

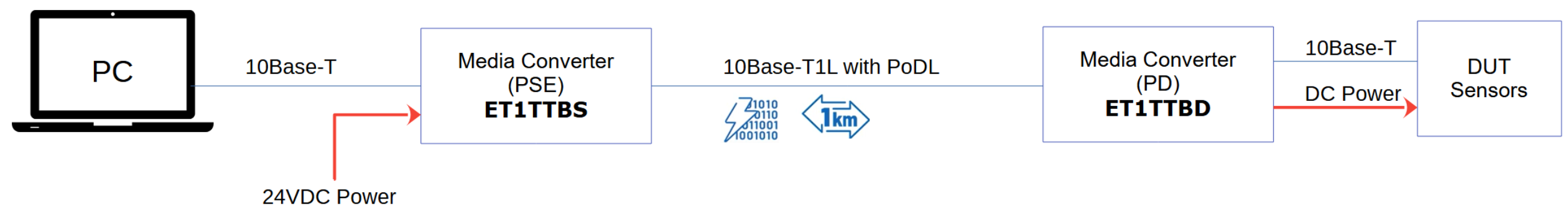

Typical Application
If you need more information, please contact: marketing@hicotel.com
