We provide series of Ethernet Switch for meeting the applicaitons of Intdustrial, Automotive and Building Management, etc.

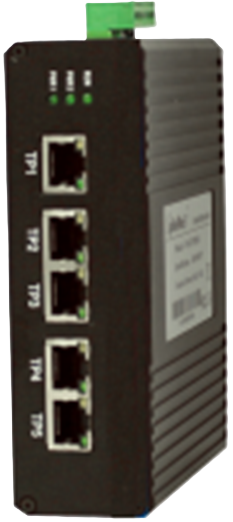

1, 10BASE-T1L Switch
We provide series of 10BASE-T1L Ethernet Switch for supporting different uplink port type/rate and different port number. The following description only lists the key feature, if you want to know the detiails oder part number and detailed specs. Please contact with Hicotel marketing team.
- uplink port
- Speed: 100M/1G
- Number: 0-2
- Type: Optical/Electrical
- Electical Connector: RJ45
- Optical Connector: SFP
- LED: LED1 - LINK/ACT; LED2 - Speed
- 10BASE-T1L
- Number: 2-8
- Connector: Screwed Connector
- LED: LED1 - LINK/ACT; LED2 - LR/SR
- Power Supply
- Input Number: 1-2
- Input Voltage: 18V - 40V DC
- Input Current: Max 2A
- Optional PoDL Support on 10BASE-T1L
- Standard: 802.3bu,802.3cg
- Class: 4,5,6,7,10,11,12
- Output Voltage: 24V
- IP Level: IP20
- Operating temperature range: -40°C to 80°C
2, 100/1000BASE-T1 Switch
We provide series of 100/1000BASE-T1 Ethernet Switch for supporting different uplink port type/rate and different port number. The following description only lists the key feature, if you want to know the detiails oder part number and detailed specs. Please contact with Hicotel marketing team.
- uplink port
- Speed: 1G
- Number: 0-2
- Type: Optical/Electrical
- Electical Connector: RJ45
- Optical Connector: SFP
- LED: LED1 - LINK/ACT; LED2 - Speed
- 100/1000BASE-T1
- Number: 2-8
- Connector: HDM
- LED: LED1 - LINK/ACT; LED2 - Speed
- Power Supply
- Input Number: 1-2
- Input Voltage: 18V - 40V DC
- Input Current: Max 2A
- IP Level: IP20
- Operating temperature range: -40°C to 80°C
3, 10BASE-T1S Switch
We provide series of 10BASE-T1S Ethernet Switch for supporting different uplink port type/rate and different port number. The following description only lists the key feature, if you want to know the detiails oder part number and detailed specs. Please contact with Hicotel marketing team.
- uplink port
- Speed: 100M/1G
- Number: 0-2
- Type: Optical/Electrical
- Electical Connector: RJ45
- Optical Connector: SFP
- LED: LED1 - LINK/ACT; LED2 - Speed
- 10BASE-T1S
- Number: 2-8
- Connector: Screwed Connector
- LED: LED1 - LINK/ACT; LED2 - LR/SR
- Power Supply
- Input Number: 1-2
- Input Voltage: 18V - 40V DC
- Input Current: Max 2A
- Optional PoDL Support on 10BASE-T1L
- Standard: 802.3bu,802.3cg
- Class: 4,5,6,7,10,11,12
- Output Voltage: 24V
- IP Level: IP20
- Operating temperature range: -40°C to 80°C
